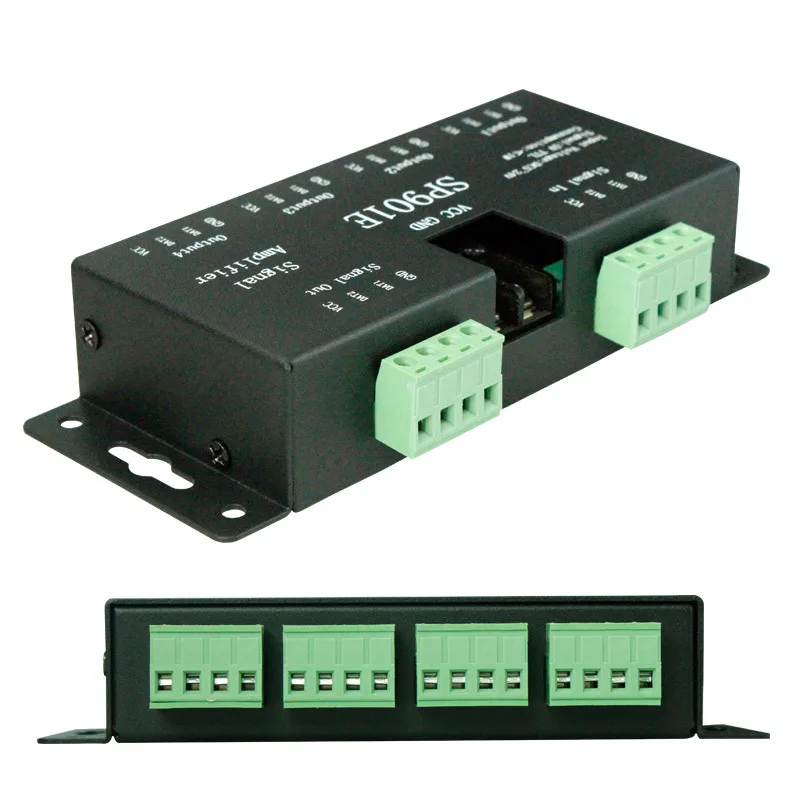

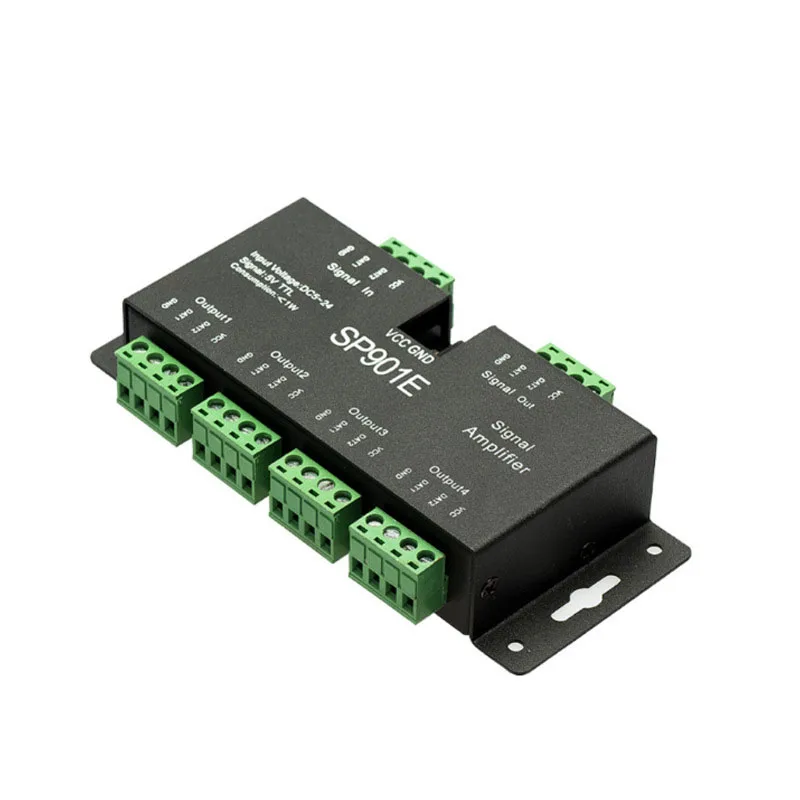

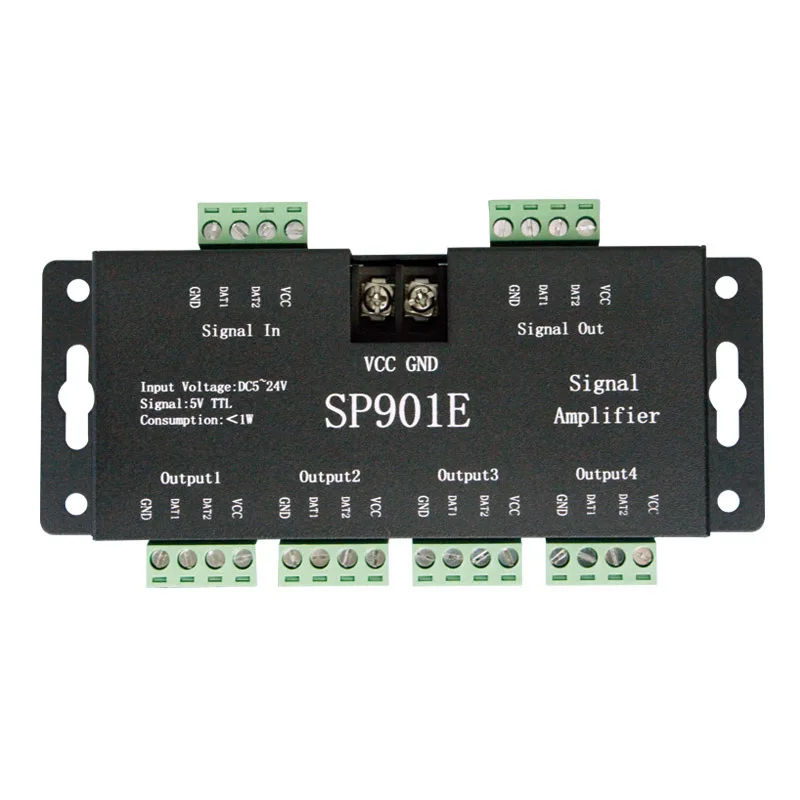

SP901E SPI Signal Amplifier for DC5V-24V LED Pixel Strip

Original price was: $14.99.Current price is: $7.99.

19953 in stock

Product Quantity Discount Price per Unit
50 - 99 38% $4.99
100 - 499 40% $4.79
500 - 999 46% $4.29
1000+ 48% $4.19

Parameter

Working voltage: DC5V~24V

Working temperature: -20-60℃

Compatible IC types: WS2812B, WS2811, SK6812, SK6812-RGBW, SM16703, WS2813, WS2815, CS8812, AL2815,

WS2801, APA102, SK9822, UCS1903, LPD6803, LPD8806, APA102

Static power consumption: <1W



Feature

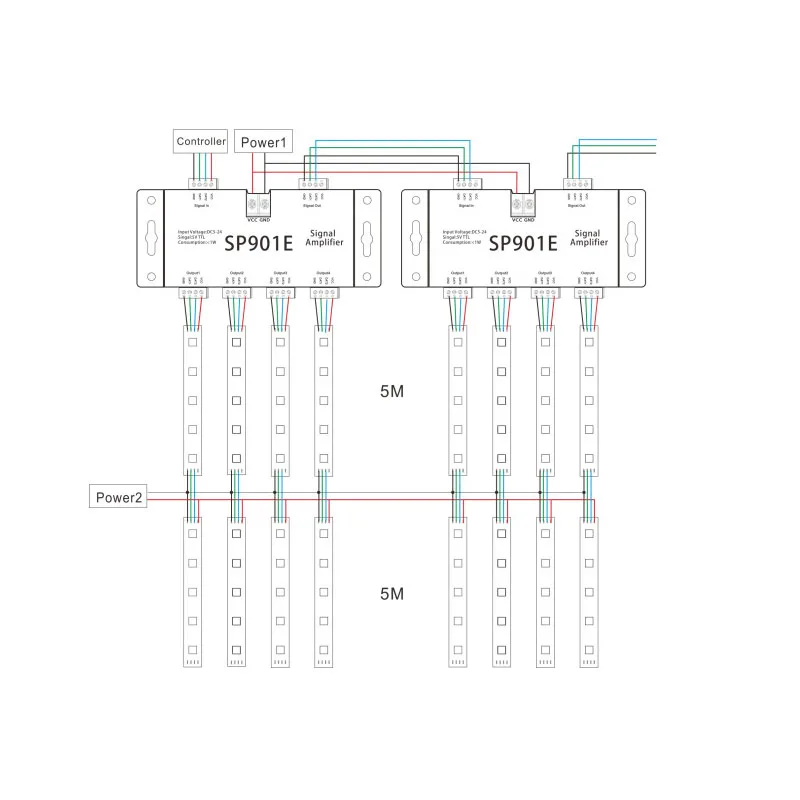

1. Compatible with various 5V-TTL signal dual signals. It receives a signal and outputs 4 or 8 signals at the same time.

Each channel can control the same number of LED pixels as the main controller.

2. A single data line can output 8-channel addressable LED strips, such as WS2812B, WS2811, SK6812RGB, SK6812-RGBW,

SM16703, etc. Can output 4-channel addressable LED strip data and clock lines WS2801, APA102, SK9822 or dual data lines,

such as WS2813, WS2815

3. DC5V~24V has a wide working voltage range, but the output voltage cannot be adjusted. The output voltage of the

power supply must be the same as the operating voltage of the LED lamp.



Precautions

1. The power supply of the sub-controller is DC5~24V, and the output voltage is consistent with the input voltage.

If the user’s lamps and output voltage are not suitable, you need to supply additional power and connect the negative pole to the sub-controller GND;

2. The current through the sub-controller is limited. If the current required by the user’s lamp is too large, additional

power needs to be added to prevent the sub-controller from passing too much current and causing overheating damage.



Package Include

1x SP901E Signal Amplifier





Weight 0.19 kg
