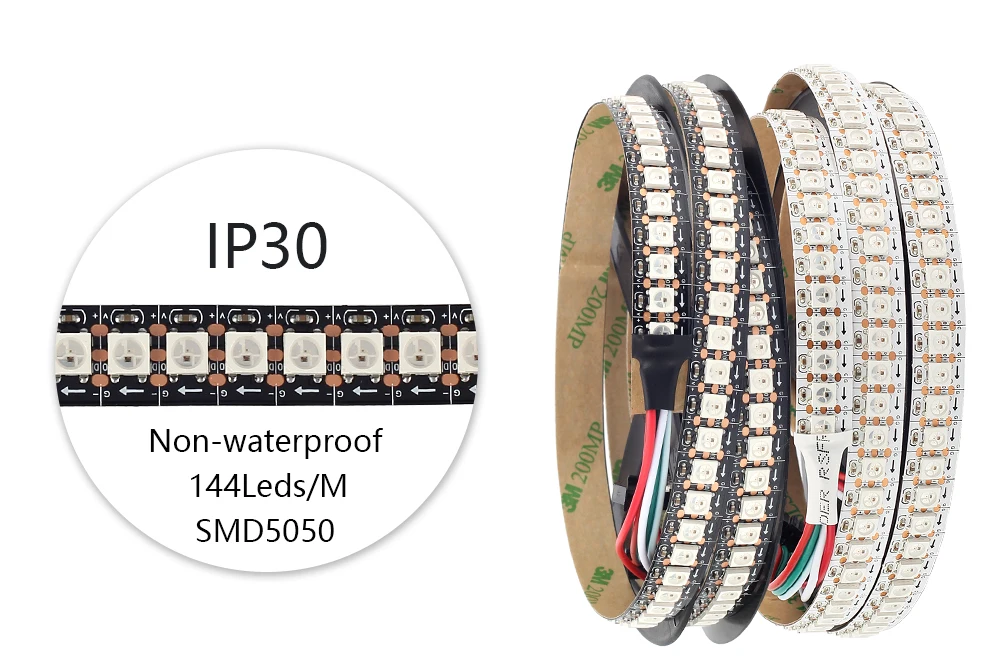

Individually Addressable Smart Pixels 5V WS2812 RGB LED Strip

$2.99$15.99

IP30 No Waterproof
IP65 Waterproof
IP67 Waterproof
1M 30LEDs
1M 60LEDs
2M 30LEDs
2M 60LEDs
3M 30LEDs
3M 60LEDs
4M 30LEDs
4M 60LEDs
5M 30LEDs
5M 60LEDs
1M 144LEDs

Input voltage: DC5V
PCB: Black
Pixels: 30/60/144/meter
Colors: Full color RGB, dream color changing
Power:
30leds/m—-9watt/meter
60leds/m—-18watt/meter
144leds/m—-43.2watt/meter
Protection Rate:
IP30 Non-Waterproof
IP65 Waterproof in Silicon Coating
IP67 Waterproof in Silicone Tube
FPCB Width:
30leds/m—-10mm
60leds/m—-10mm
144leds/m—-12mm
LED Resource: WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic).
LED: Each LED is separately controlled.
IC Type: Improved version ws2812 IC(built inside 5050 SMD RGB LED).
Cuttable: Every LED is cuttable.
Package: In anti-static bag, IP30 IP65 with adhensive tape on the back, IP67 without adhensive.
Each strip with one free male connector for connector.
Please Pay Attention:
1. The Price is Only LED Strip, not Included power supply and LED controller.
WS2812B must use DC5V power supply and pixels LED controller to control.
2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA. 3-Pin JST Connector Wire is 20AWG.
3. LED strip can be cut between every LED to create custom lengths.
4. Do Not Bend Strip Sharply.
5. Longer LED Strip Runs, please power from 2 pin power wire of both ends to reduce voltage drop.
6. Every 0.5 Meter with solder joints, It Is very normal in an electronic product, it’s not a quality problem.

How to Choose LED Power Supply and Pixels Controller?

1. Calculate the whole LED strip lights watts.

One LED chip is about 0.3W, If you buy 5m 60Leds/m (whole LED Strip is 300 Leds), so 0.3W*300=90W.

2. Choose the correct LED power supply.

This LED strip is work with DC5V power, so 90W / 5V=18A ( at Least 18A or more ).

3. Choose the correct pixels controller you like.

WS2812B LED Strip is controlled by single Data Line controller.

You could choose them from our store, we have IR/RF Remote, Bluetooth, Wifi, Music APP and Computer controller etc.

(If you can’t recognize them, you could feel free to contact us, we are glad to help you)

Weight 0.1 kg
